Operation Results

During biometric operation capturing, callback with intermediate results are returned. The results can be interpreted graphically to make the UI smoother, or for the user to perform liveness and ICAO related actions. For each processed frame Janus returns a JSON object through WebRTC connection, i.e.:

{
    "operationFinished": true,
    "status": 1,
    "yaw": -1.4272499084472656,
    "roll": 2.770369529724121,
    "pitch": 4.6590986251831055,
    "livenessTargetYaw": 0,
    "livenessScore": 254,
    "quality": 85,
    "errorMessage": "",
    "boundingRect": {
        "x": 260,
        "y": 197,
        "width": 195,
        "height": 201,
        "fullImageWidth": 640,
        "fullImageHeight": 480
    },
    "icaoWarnings": [],
    "livenessAction": []
}

Element	Type	Glossary
operationFinished	bool	Indicates if operation was finished and this is the last result returned
status	Status	Current operation status
yaw	float	Yaw angle on last processed frame
roll	float	Roll angle on last processed frame
pitch	float	Pitch angle on last processed frame
livenessTargetYaw	float	To what angle face should be tuned. Used on Active liveness mode
livenessScore	int	What is the current liveness score. Used in Passive liveness modes
quality	int	What is the current face quality
errorMessage	string	Error string if and exception has occurred
icaoWarnings	ICAOWarning	ICAO warnings. Empty array means there are no ICAO warnings
livenessAction	LivenessAction	Indicates which liveness actions to perform if Liveness is checked. Empty array means that no liveness actions need to be performed
boundingRect	Rect	Face bounding rectangle. If face is not detected, rectangle is not returned.

Yaw

Shows current face yaw angle.

Liveness target yaw

Shows what angle face should be turned.

Liveness score

Show liveness progress. Used in Passive, PassiveWithBlink and Simple liveness modes. Liveness is considered passed when this score becomes higher than the LivenessThreshold.

Status

Status	Int representation	Glossary
NONE	0	None of status values were returned
SUCCESS	1	Operation completed successfully
TIMEOUT	2	Operation has timeout out
CANCELED	3	Operation was cancelled
BAD_QUALITY	4	Not used (in align with MegaMatcher ID SDK)
MATCH_NOT_FOUND	5	Verified subjects did not match
CAMERA_NOT_FOUND	6	Not used (in align with MegaMatcher ID SDK)
FACE_NOT_FOUND	7	Face was not found during extraction
LIVENESS_CHECK_FAILED	8	Face was not detected as alive
BAD_SHARPNESS	9	Face image was not sharp enough
TOO_NOISY	10	Face image was too noisy
BAD_LIGHTING	11	Indicates bad lighting or lighting artifacts
OCCLUSION	12	Indicates face occlusion
BAD_POSE	13	Indicates bad face position
TOO_MANY_OBJECTS	14	Indicates that more than one face was detected
MASK_DETECTED	15	Indicates that mask was detected
DUPLICATE_FOUND	16	Indicates that duplicate was found if MMABIS integration is true
DUPLICATE_ID	17	Indicates that duplicate id was found if MMABIS integration is true
MOTION_BLUR	18	Indicates bad image quality because of motion blur
COMPRESSION_ARTIFACTS	19	Indicates bad image quality because of compression artifacts
TOO_DISTANT	20	Indicates bad image quality because the subject is too far
TOO_CLOSE	21	Indicates bad image quality because the subject is too close
FAILED	22	Indicates a general failure
RESOLUTION_INSUFFICIENT	995	Indicates that even after waiting for StrictQualityTimeout the pixel count did not reach StrictQualityImageSize
CHUNK_RECEIVE_TIMEOUT	996	Indicates that the server stopped receiving audio/frame chunks, this is usally due to a dropped session (e.g. a browser refresh)
STREAM_DECODE_FAILED	997	Indicates that the decoder failed to decode audio/frame chunks, this is usually due to a very poor internet connection or some other packet loss
ADJUSTING_QUALITY	998	Indicates that image quality is being adjusted in order to receive good frames. This status is returned when FramesToSkip setting is used
INTERNAL_ERROR	999	Internal error has occurred

Bad sharpness

Is returned when face image sharpness is poor.

Too noisy

Is returned when face image is too noisy (occurs most likely due to poor camera).

Bad lighting

Is returned when face cannot be extracted due to poor lighting conditions.

Occlusion

Is returned when part of the face is covered (for example, hand is touching the face). If face is covered by a mask, separate Mask detected status is returned.

Bad pose

Is returned when face is turned too much.

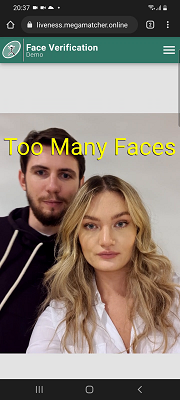

Too many objects

Is returned when there is more than one face facing the camera.

Mask detected

Is returned when face is wearing a mask.

Duplicate found

Is returned when a duplicate subject is found in MMABIS, can only occur if MMABIS integration is configured.

Duplicate id

Is returned when a duplicate id is found in MMABIS, can only occur if MMABIS integration is configured.

LivenessAction

Action	Int representation	Glossary
NO_ACTION	0	No actions are required from the user
KEEP_STILL	1	The user should keep still as possible
BLINK	2	The user should blink at least once
ROTATE_YAW	4	The user should rotate his/hers face according instructions
KEEP_ROTATING_YAW	8	The user should keep turning face from side to side
TURN_TO_CENTER	16	The user should center out his/hers face
TURN_LEFT	32	The user should turn his/hers face left
TURN_RIGHT	64	The user should turn his/hers face right
TURN_UP	128	The user should turn his/hers face up
TURN_DOWN	256	The user should turn his/hers face down
MOVE_CLOSER	512	The user should move his/hers face closer to the camera
MOVE_BACK	1024	The user should move his/hers face further away from the camera

Keep still

When this action occurs, it is advised to display the liveness score, in order for the user to know that something is actually happening. During this action, user should keep still as possible until the liveness reaches LivenessThreshold.

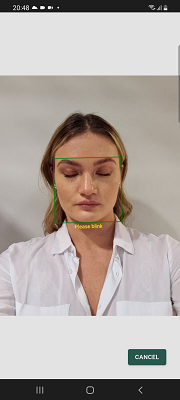

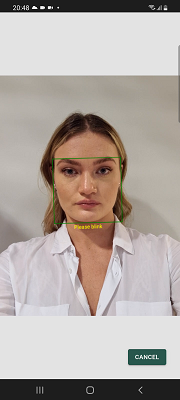

Blink

During this action user should blink at least one time.

Rotate yaw

During this action, user should rotate his yaw according LivenessTargetedYaw. During this action MegaMatcher ID UI uses yaw angle to show user current position with an arrow, and livenessTargetYaw as target in order to show the user where to rotate his head.

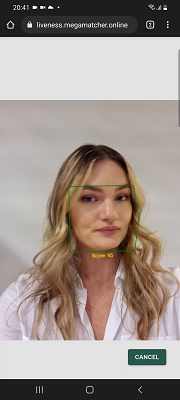

Keep rotating yaw

During this action user should keep rotating his yaw from left to right until the livenessScore is above the LivenessThreshold.

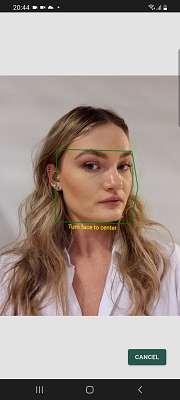

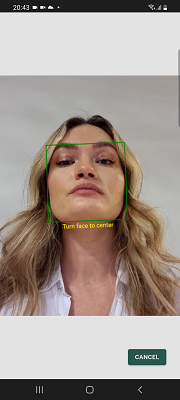

Turn to center

During this action user should center out his face.

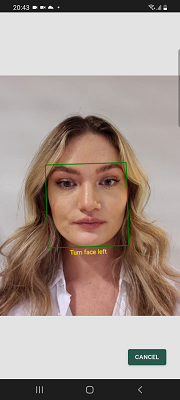

Turn left

During this action user should turn his head from the center to the left.

Turn right

During this action user should turn his head from the center to the right.

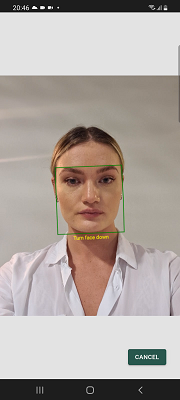

Turn down

During this action user should lower his head.

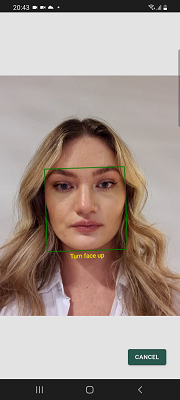

Turn up

During this action user should raise his head.

Move closer

During this action user should move closer to the camera.

Move back

During this action user should move further away from the camera.

ICAOWarning

Warning	Int representation	Glossary
NO_WARNINGS	0	Indicates that no warnings were detected
FACE_NOT_DETECTED	1	Indicates that was not detected
ROLL_LEFT	2	Indicates face roll left
ROLL_RIGHT	3	Indicates face roll right
YAW_LEFT	4	Indicates face yaw left warning
YAW_RIGHT	5	Indicates face yaw right warning
PITCH_UP	6	Indicates pitch up
PITCH_DOWN	7	Indicates pitch down
TOO_NEAR	8	Indicates that face is too near
TOO_FAR	9	Indicates that face is too far
TOO_NORTH	10	Indicates that face is too north
TOO_SOUTH	11	Indicates that face is too south
TOO_EAST	12	Indicates that face is too east
TOO_WEST	13	Indicates that face is too west
SHARPNESS	14	Indicates that face sharpness was insufficient
BACKGROUND_UNIFORMITY	15	Indicates background uniformity
GRAYSCALE_DENSITY	16	Indicates grayscale density
SATURATION	17	Indicates that saturation was detected
EXPRESSION	18	Indicates non neutral face expression
DARK_GLASSES	19	Indicates that dark glasses detected
EYES_CLOSED	20	Indicates that eyes were closed
MOUTH_OPEN	21	Indicates that mouth was open
LOOKING_AWAY	22	Indicates that eyes were looking away
RED_EYE	23	Indicates that red eyes were detected
FACE_DARKNESS	24	Indicates that the face was too dark
UNNATURAL_SKINTONE	25	Indicates that unnatural face skin tone was detected.
WASHED_OUT	26	Indicates that face colors were washed out (blurry)
PIXELATION	27	Indicates that pixelation was detected
SKIN_REFLECTION	28	Indicates that there was skin reflection on the face
GLASSES_REFLECTION	29	Indicates that there was glasses reflection
HEAVY_FRAME	30	Indicates that glasses have a thick frame
OCCLUSION_WARNING	32	Indicates that the face is occluded by something
RESOLUTION_WARNING	33	Indicates that the resolution is not acceptable
MOTION_BLUR_WARNING	34	Indicates that motion blur has been detected
COMPRESSION_ARTIFACTS_WARNING	35	Indicates that compression artifacts have been detected
OVEREXPOSURE	36	Indicates that overexposure was detected
UNDEREXPOSURE	37	Indicates that underexposure was detected
GLASSES	38	Indicates that glasses have been detected
HAT	39	Indicates that some sort of headware is on the persons head
HEAD_MOVEMENT	40	Indicates that subject's head is currently moving
IMAGE_RESOLUTION	41	Indicates that stream resolution is below threshold

No warnings

Indicates that no warnings were detected

Face not detected

Indicates that face is not detected.

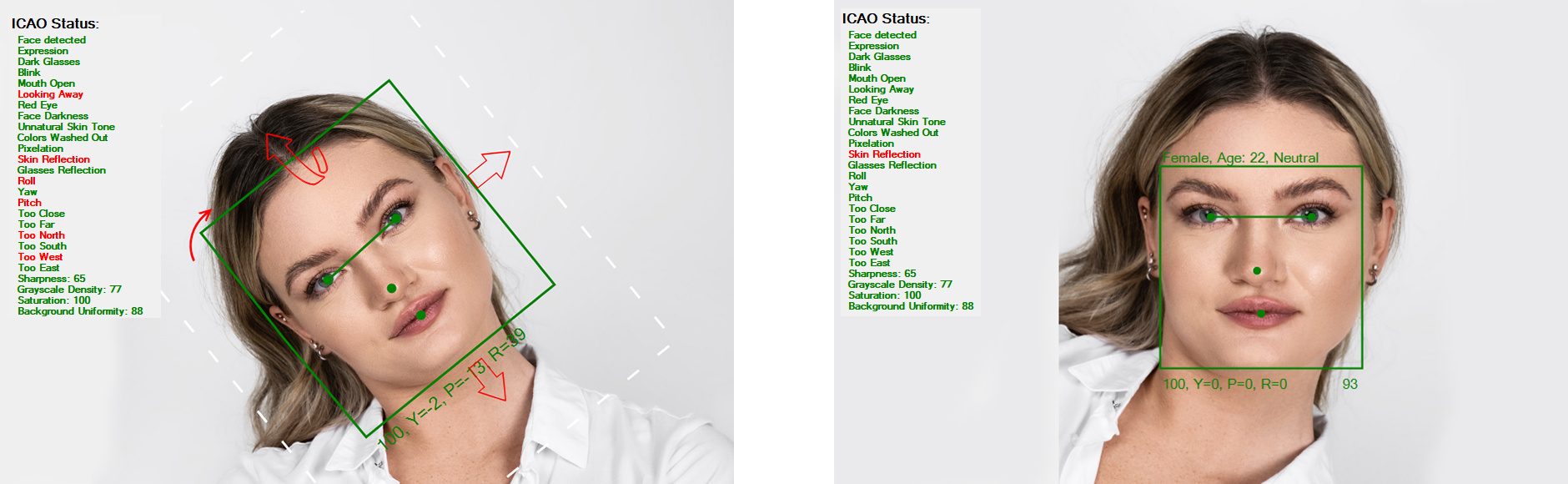

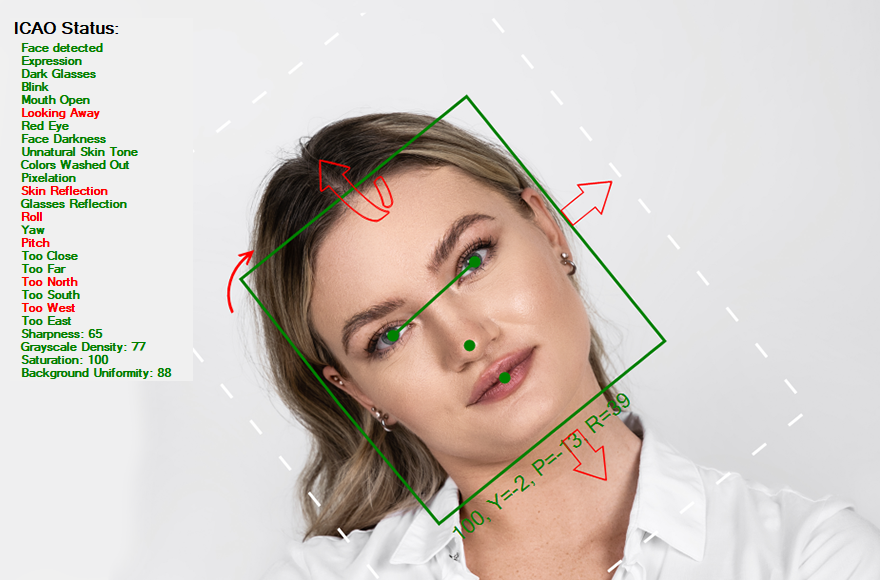

Roll left/right

Indicates that face is rolled too left/right. Arrows show the user to roll his face left/right.

Yaw left

Indicates that face is turned too left. Arrows show the user to turn his face right.

Yaw right

Indicates that face is turned too right. Arrows show the user to turn his face left.

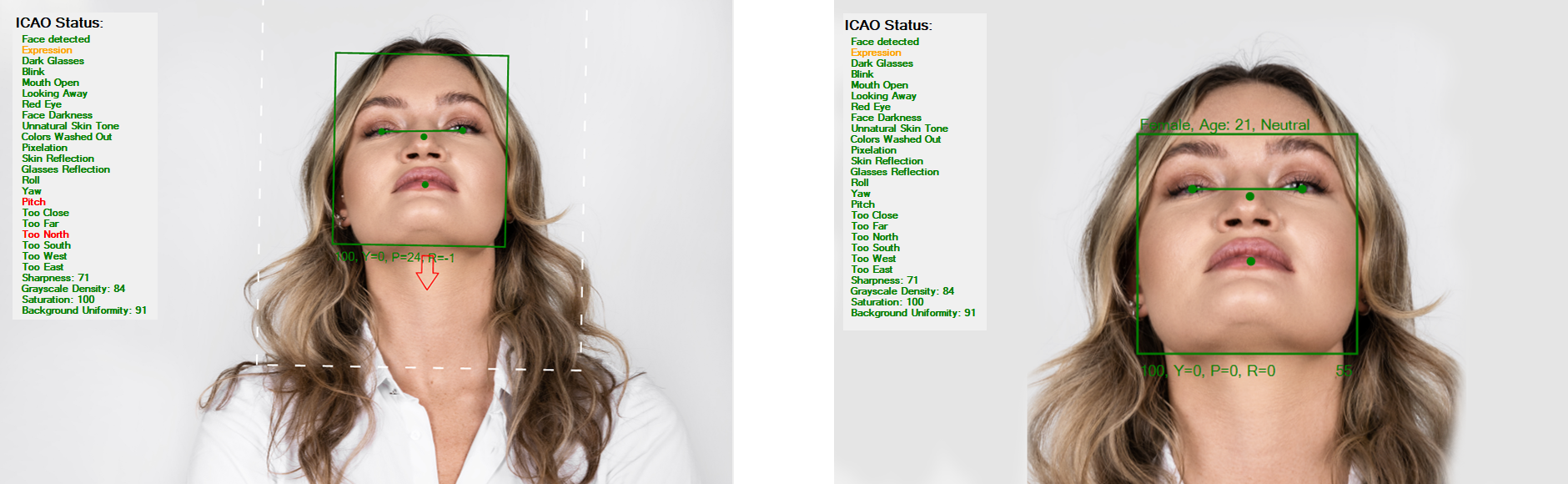

Pitch up

Indicates that face is raised too much. Arrows show the used to lower his face.

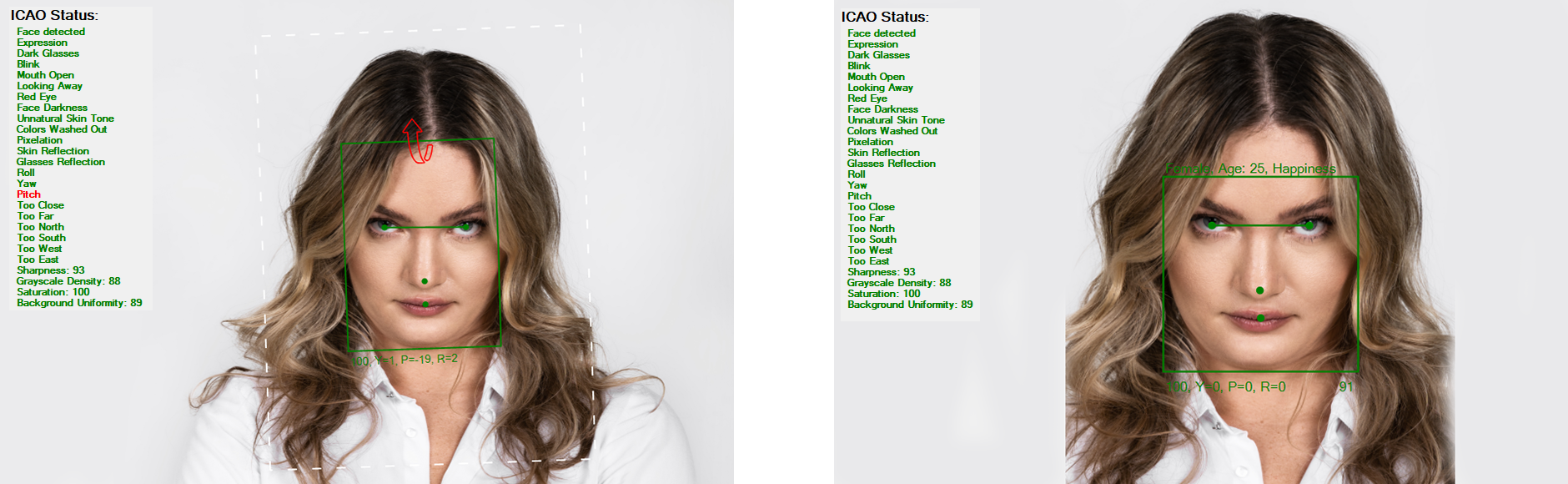

Pitch down

Indicates that face is too low. Arrows show that face should be raised.

Too near

Indicates that face is too near the camera. Face should be moved back.

Too far

Indicates that face is too far from the camera. Face should be moved closer.

Too north

Indicates that face is position too close to the upper side of the image. Face should be moved towards the center.

Too south

Indicates that face is position too close to the bottom side of the image. Face should be moved towards the center.

Too east

Indicates that face is position too close to the right side of the image. Face should be moved towards the center.

Too west

Indicates that face is position too close to the west side of the image. Face should be moved towards the center.

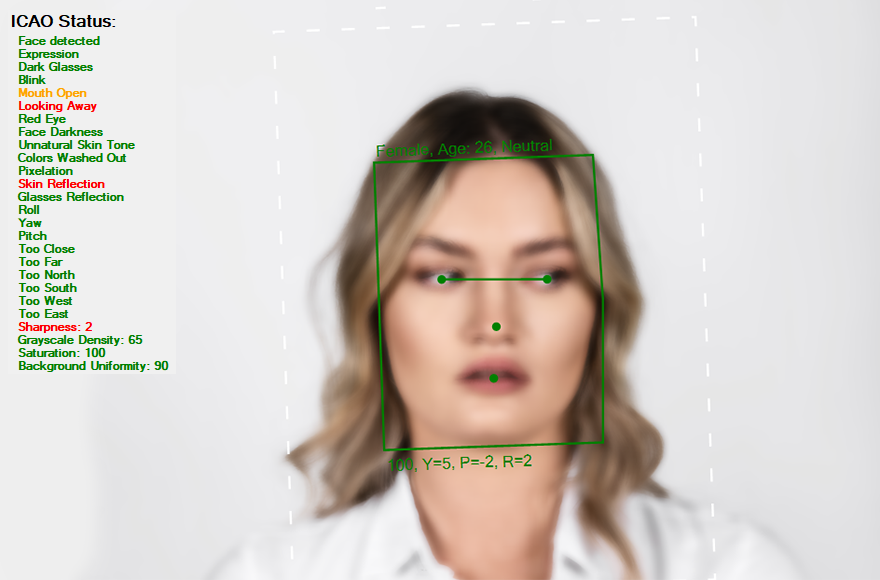

Sharpness

Indicates that image is blurry. User should keep still, or camera should be adjusted.

Background uniformity

Indicates that backgroud is too colorful. User should move to a more solid backgroud.

Grayscale density

Indicates that image is gray scale. Camera settings should be adjusted.

Saturation

Indicates that image is saturated too much. Camera settings should be adjusted.

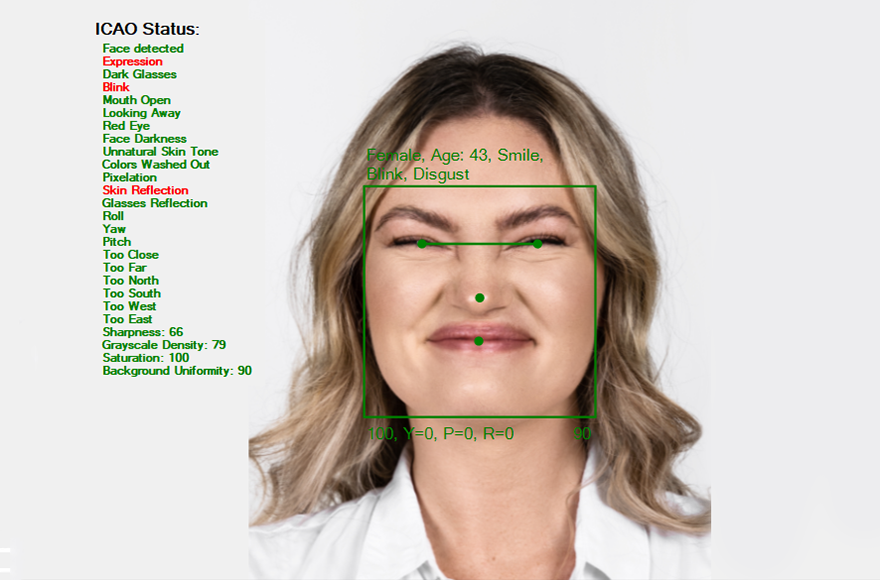

Expression

Indicates that face expression is not neutral. User should maintain neutral face expression during capturing.

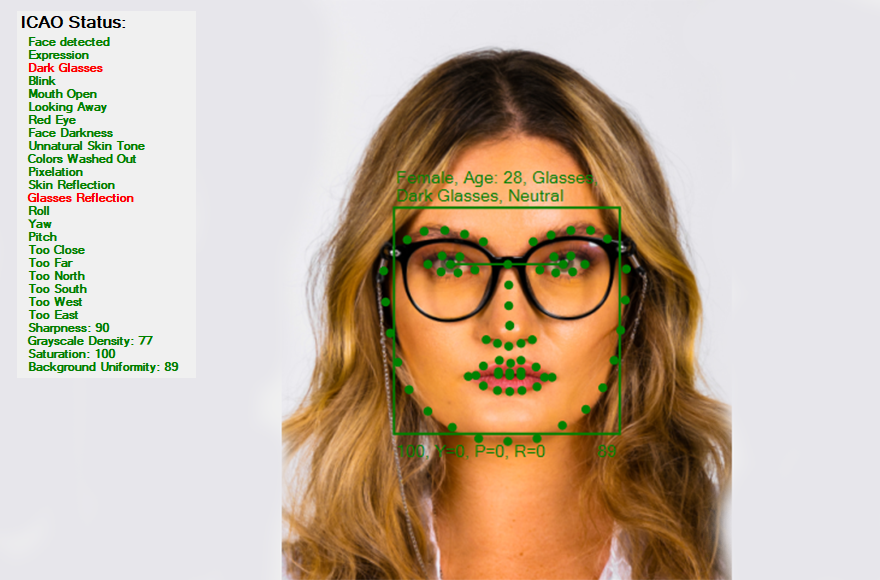

Dark glasses

Indicates that face is captured with dark glassed. Dark glasses should be removed. This status may also occur when normal glasses have hard reflections.

Eyes closed

Indicates that face has closed eyes. User should keep his eyes open and blink as minimal as possible during capturing.

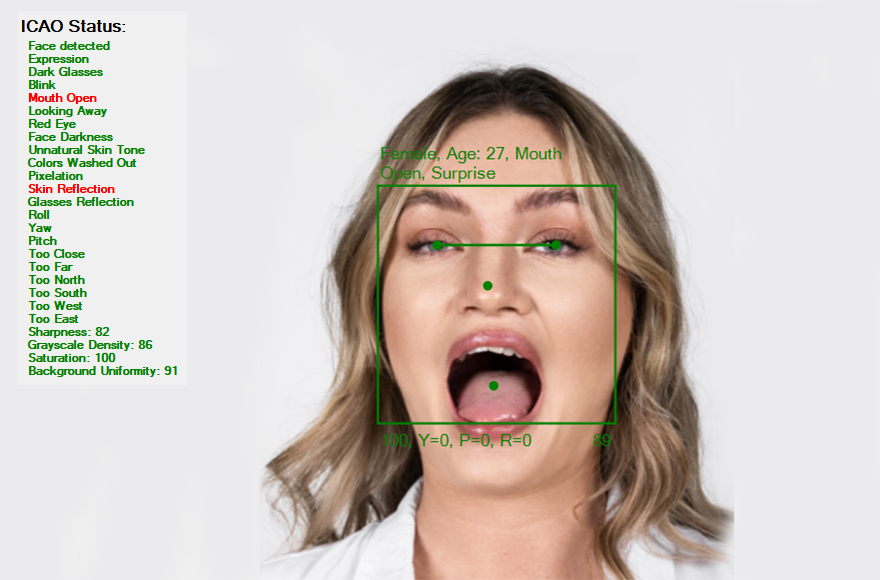

Mouth open

Indicates that face has an open mouth. User should have his mouth closed and maintain neutral face expression.

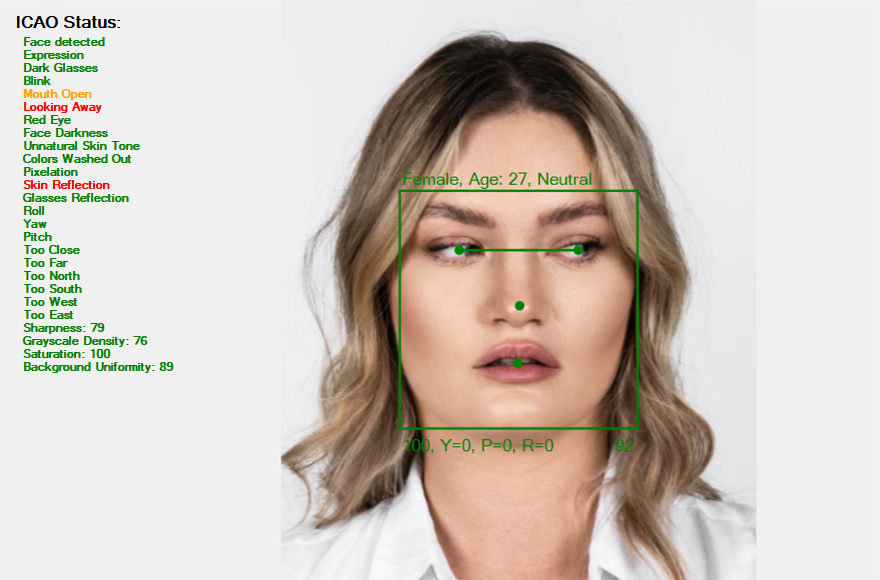

Looking away

Indicates that face is looking away from the camera. User should look directly into the camera.

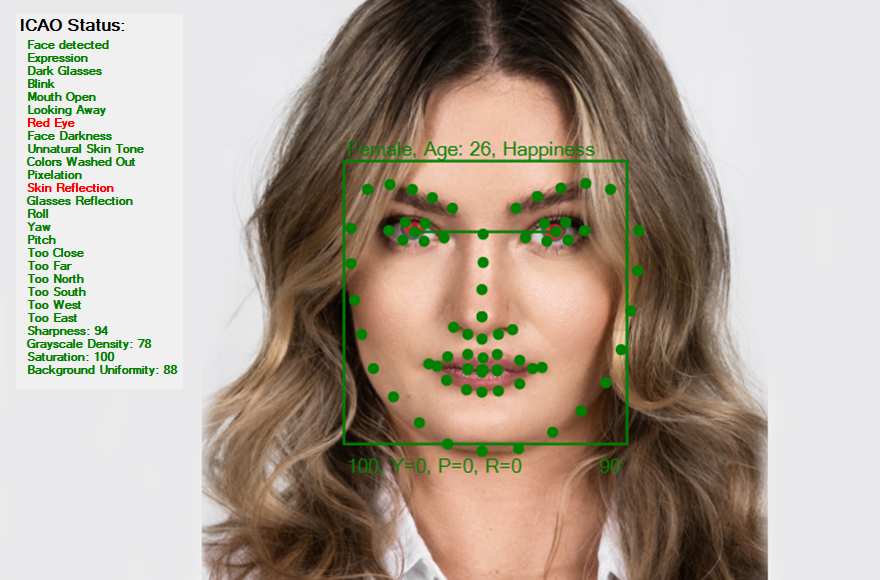

Red eye

Indicates that image has red eyes. Camera flash should be adjusted.

Face darkness

Indicates that part of the face is not lip up appropriately. Lighting should be adjusted.

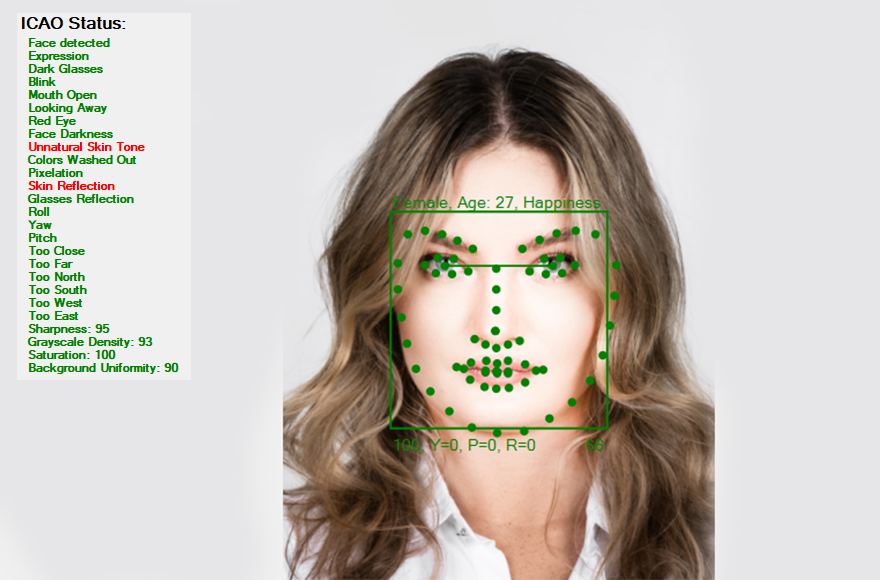

Unnatural skintone

Indicates that skin tone seems unnatural. Lighting should be adjusted.

Washed out

Indicates that colors are washed out. Camera should be adjusted.

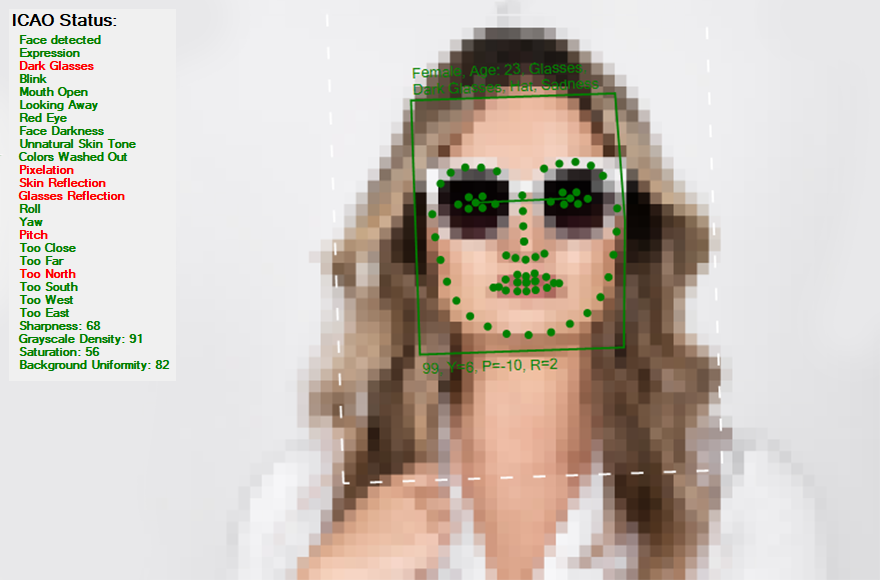

Pixelation

Indicates that image is pixelated. Camera should be adjusted.

Skin reflection

Indicates that face skin is reflecting light. Lighting should be adjusted.

Glasses reflection

Indicates that there is a reflection on users glasses. User should capture without glasses or adjust the lighting.

Heavy frame

Indicates that user's glasses have a thick frame. User should capture without glasses.

Occlusion

Indicates that the face is occluded by something

Resolution

Indicates that the resolution is not acceptable

Motion blur

Indicates that motion blur has been detected

Compression artifacts

Indicates that compression artifacts have been detected

Too distant

Indicates bad image quality because the subject is too far.

Too close

Indicates bad image quality because the subject is too close.

Overexposure

Indicates that overexposure was detected

Underexposure

Indicates that underexposure was detected

Glasses

Indicates that glasses have been detected

Hat

Indicates that some sort of headware is on the persons head

Head movement

Indicates that subject's head is currently moving

Image resolution

Requires a minimum resolution and prioritizes frames that meet or exceed this threshold when stream contains multiple resolutions.
